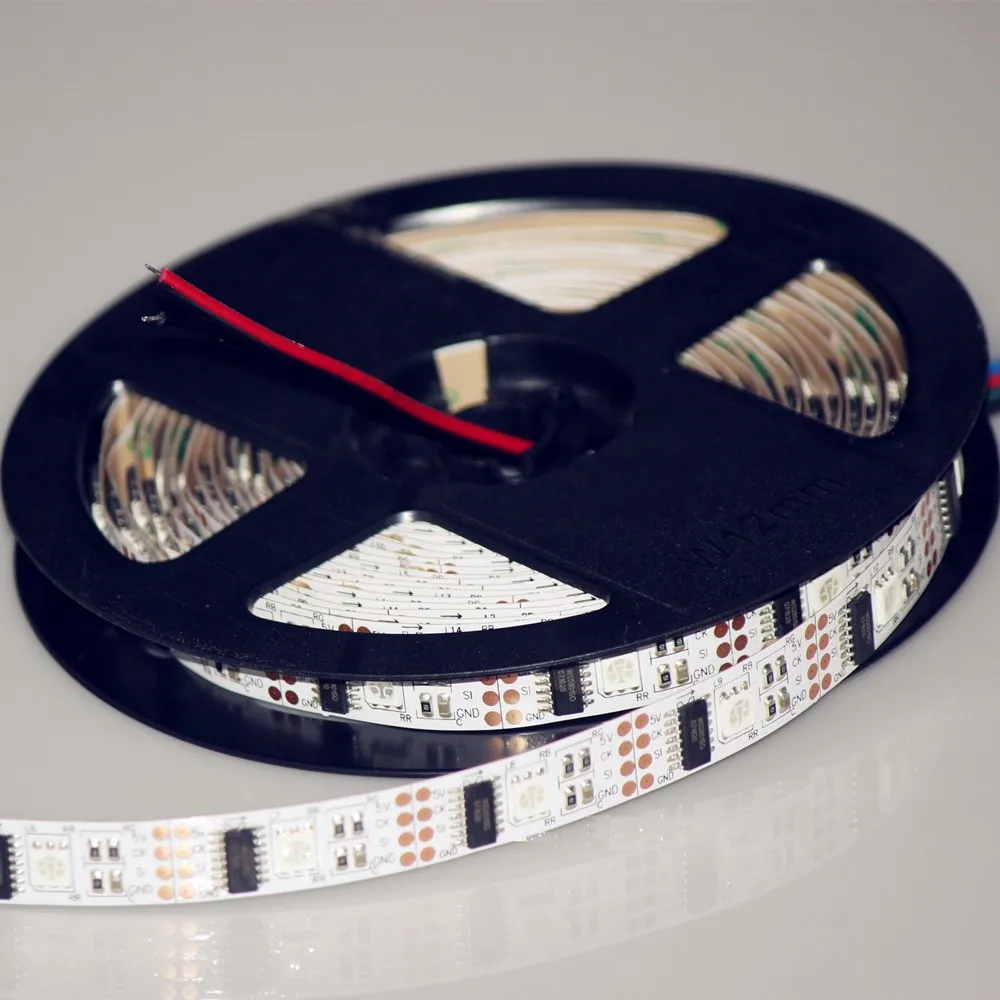

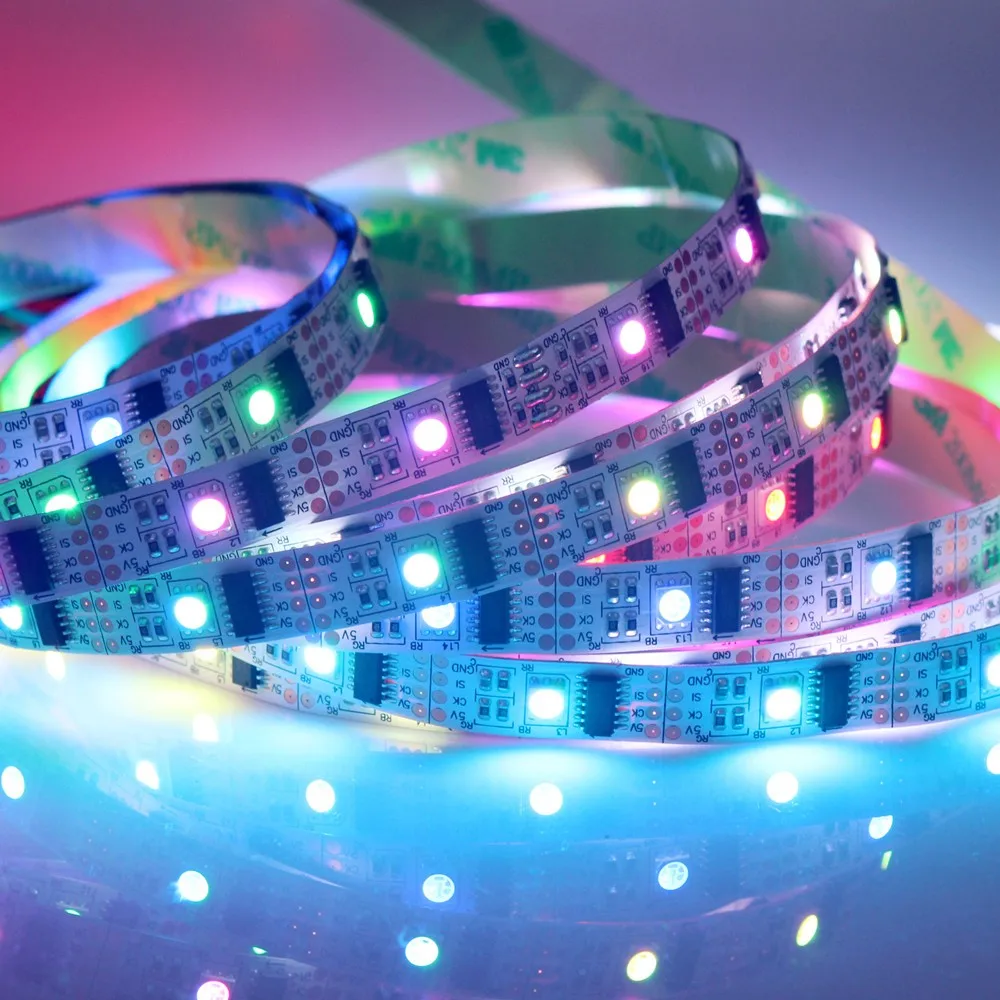

WS2801 LED strip Raspberry Pi control LED strip For Arduino Development Ambilight TV White Or Black PCB
1M W PCB IP30: 1 meter white PCB IP30 pixel led strip ws2801
2M W IP30 2Connector: 2 meters white PCB IP30 pixel led strip ws2801 + 2pcs connectors
5M W IP30 4Connector: 5 meters white PCB IP30 pixel led strip ws2801 + 4pcs connectors
1M Black PCB IP30: 1 meter black PCB IP30 pixel led strip ws2801
2M B IP30 2Connector: 2 meters Black PCB IP30 pixel led strip ws2801 + 2pcs connectors
5M B IP30 4Connector: 5 meters Black PCB IP30 pixel led strip ws2801 + 4pcs connectors
5M W IP67 4Connector: 5 meters white PCB IP67 pixel led strip ws2801 + 4pcs connectors
5M B IP67 4Connector: 5 meters Black PCB IP67 pixel led strip ws2801 + 4pcs connectors
50CM White PCB IP30
Following information will help you to use Arduino working with this product.
WS2801, 32 diodes / meter, BGR strip, will send the length you select.
Power supply and controller are not including.2m including 2 connectors, 5m including 4 connectors, 1m and 50cm are not including connectors.
Select 50cm, will send you 50cm a piece; select 1m will send 1m a piece, select 2m will send 2m a piece, 5m will send 5m a piece. If need other length, please contact us for custom.
Development of video
IP67=waterproof Silicon tube
A control circuit for the 4 pin.
1: 5 V + ('5V' = 'black line' = 'power of positive' = '+')
2: clock ('CK' = 'clock line')
3: Data ('SI' = 'signal line')
4: GND 5 V- ('GND' = 'Ground' = 'negative power' = '-')
1) Size:Max L500cm (5M) x W1.5cm x T0.35cm
2) Emit Color: Pixel led
3) Protection: IP20 NON- Waterproof
4) Working Voltage: 5V DC
5) LED Quantity: 32eds / m
6) View angle: 120 ° ~ 140 °
7) Working Temperature: -20 ° to 50 °
8) Bright: 350-450mcd / led
9) Wattage: 7- 9W / meter,
10) Use the programmable controller, Raspberry Pi or Arduino or T-1000S controller
About led strip for use Suggestions / Notes:
First: Do not use the USB power source such as a computer USB, charging treasure USB, USB cell phone charger, and other USB power source, such as the power supply voltage of the LED lamp is unstable, according to many customers reflect the use of this class USB power prone to the phenomenon does not work, it is worth noting!
Such a power supply voltage instability, lamp beads are very sensitive, prone to such power lamp beads can not start because the lights with pcb version is a resistance, during transmission, the power signal and data signal are in the process of transfer of reduced's sake.
Second: If the lights do not work, check 'controller / power' if there is a failure? (If this does not solve the problem, please send the relevant controller and power supply and connectors picture to me, I will solve the problem for you, until you are satisfied)
Third: Check 'led strip' point of both ends of the connection, do not let them stick together with each other. Like I send pictures of the same.
Fourth, pay attention to the connection should be compact, but also close enough connection there may be led does not light phenomena.
